The angular resolution achievable in flux maps obtained with different sample
sizes is better illustrated in Figure 7.3, where two
HII regions with a separation of about 0.5 arcsec near the center of
the flux maps are shown.

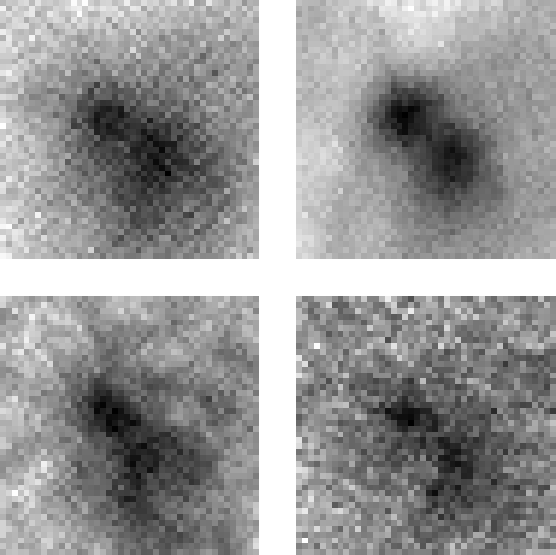

Figure 7.3:
Angular resolution of GAIA BBP flux maps of M100.
A part near the center of GAIA BBP flux maps of M100 shown in
Figure 7.2, showing two HII regions with a separation of
about 0.5 arcsec.
Upper row: and pixels/sample.
Lower row: and pixels/sample.
The side of each image is about 2 arcsec.
|
The increase of angular resolution with the decrease in the sample size
can now be clearly seen, just as the increase in the noise in the fainter
surroundings of the HII regions.
It appears that an overall resolution of about 0.4 arcsec would be
obtained with a sample size of pixels.
Such an angular resolution corresponds to that of an image obtained with an
excellent large ground-based telescope during the short times of superb seeing.
The best images obtained by the ESO Very Large Telescope have just about this
small stellar image size.
Since the advantage of observing with such a sample size has been already
variously demonstrated in Chapter 5, this is the only sample
size considered in the following.
