The design of the GAIA spacecraft (Figure 2.5)
was essentially driven by the adopted scanning law and by the requirement
of a high thermal and mechanical stability.
Additional constraints were posed by the expected budget and by the
recommended use of the ESA Ariane V launcher for the satellite's insertion
into orbit.
Its fundamental characteristics are passive thermal control system, high level
of thermo-mechanical separation between the payload and service modules, and
monolithic payload module made of a high-performance material.
The diameter and height of the spacecraft are 4.5 m and 3.1 m,
respectively.
Its dry mass is about 2000 kg, which, with about 1000 kg of
propellant, gives a launch mass of about 3000 kg.

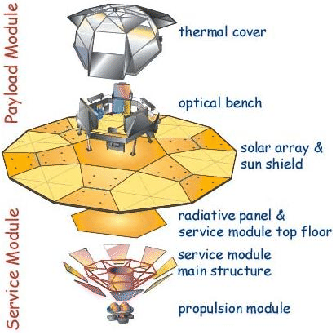

Figure 2.5:
An exploded view of GAIA spacecraft. The whole spacecraft spins as a single
structure around the symmetry axis (vertical in this view).
This arrangement, in combination with the adopted scanning law, provides
the required thermal and mechanical stability.
|
